STS-122 Payload "Columbus"

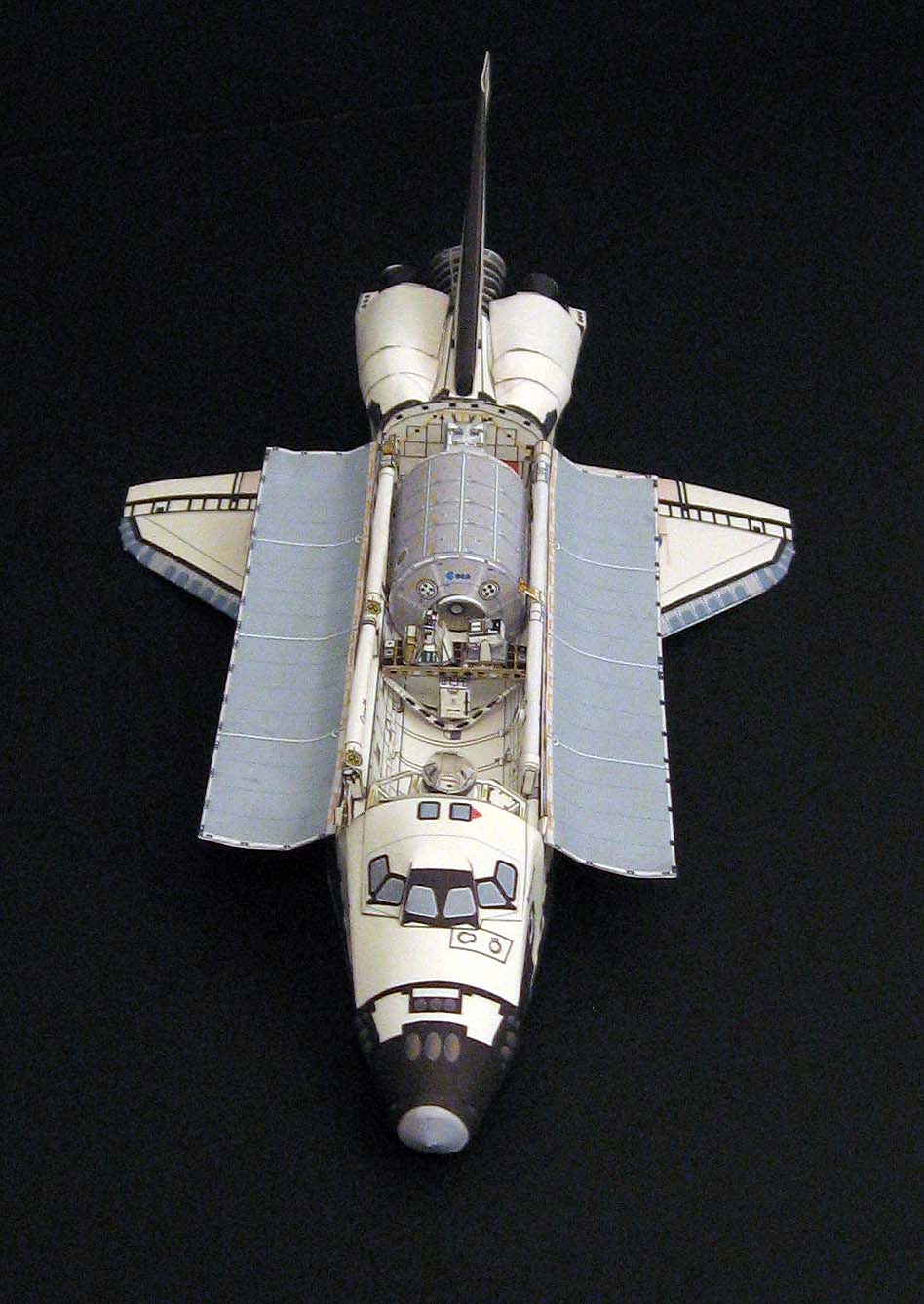

Space Shuttle Atlantis was launched to the ISS on Feb 7, 2008 carrying the long awaited "Columbus" European Research Module on mission 1E in the assembly sequence. Two European astronauts were onboard, Leopold Eyharts from France and Hans Schlegel from Germany. Eyharts was the new ISS-16 crewmember replacing Dan Tani. Atlantis docked for the first time to the new installed Node 2 module which was delivered via STS-120 mission. This mission brought a new Space Station configuration with the addition of Columbus to the starboard port of Node 2.

This papermodel is available via Paypal only. The details that helped design this model was obtained from NASA site and technical data from Robotics documentation.

The ESP-2 configuration for this mission has been added to this page and is available for download in both 1:144 and 1:100 scales.

Enjoy this model!

PAYLOADS
Orbiter Docking System (bay 2)
KU-band antenna (bay 1) Starboard
Remote manipulator Arm: port side
Orbiter Boom Sensor System (OBSS): Starboard
Power data Grapple fixture : bay 5 port
ICC carrier (EuTEF and SOLAR) bay 6

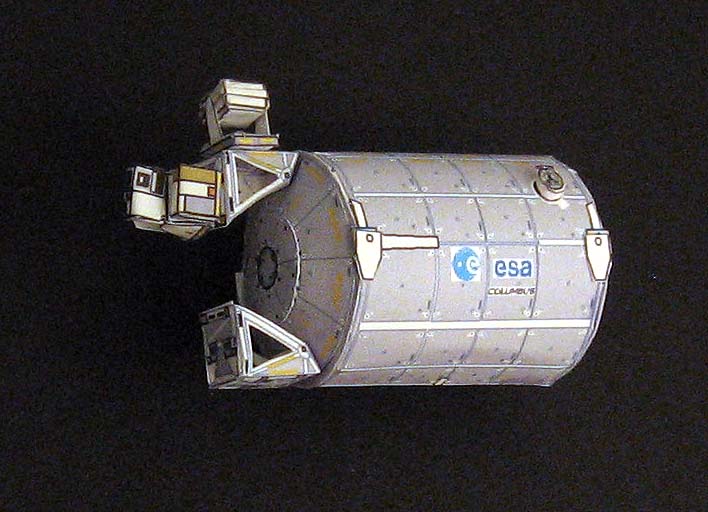

"Columbus": bays 8 - 11

Download Files:

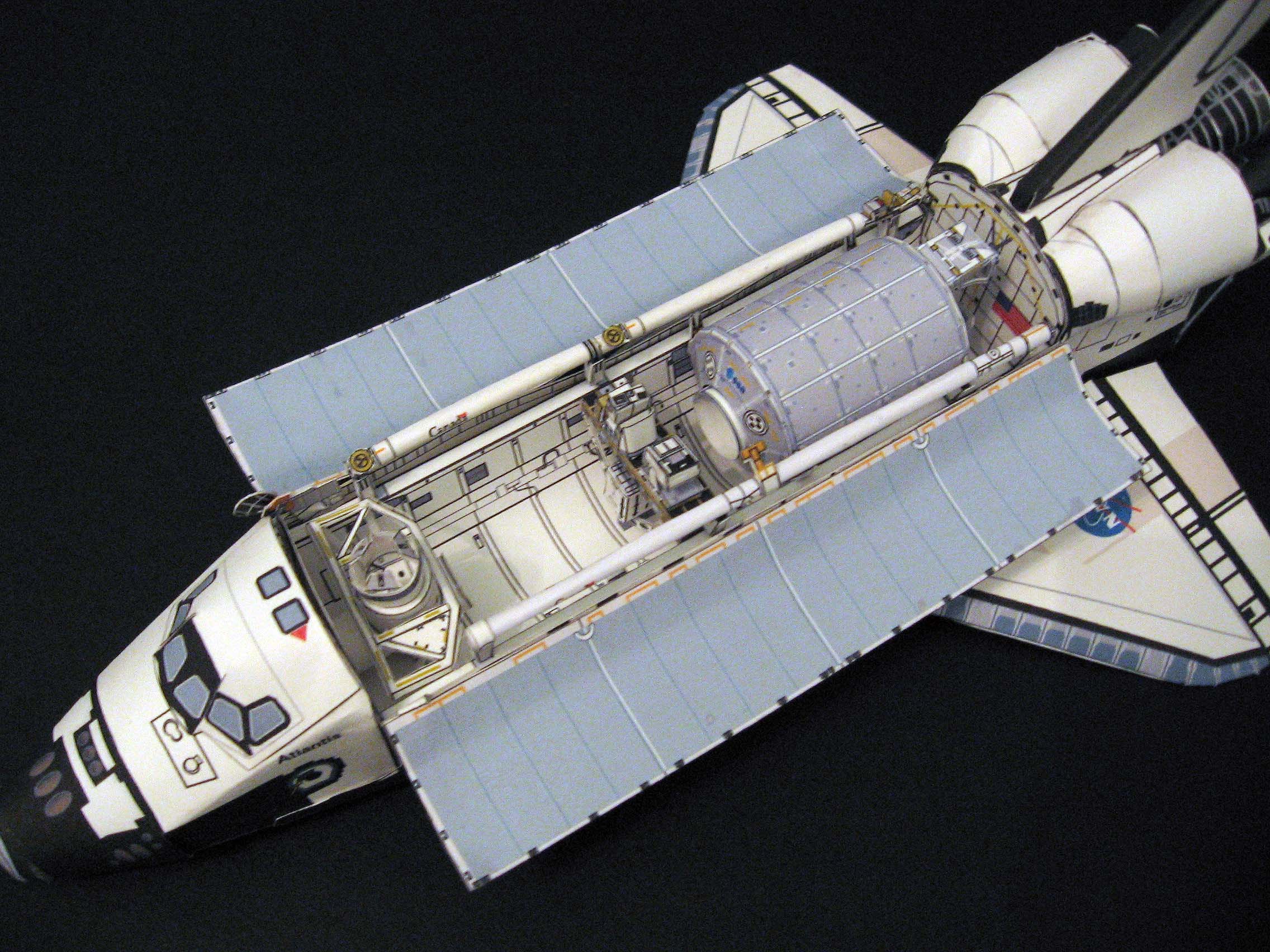

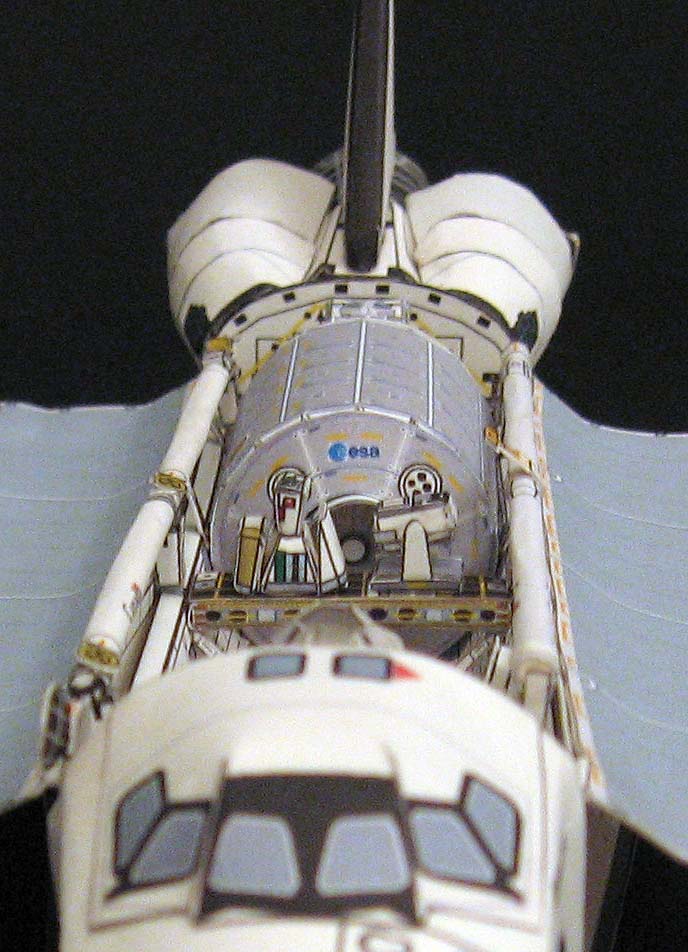

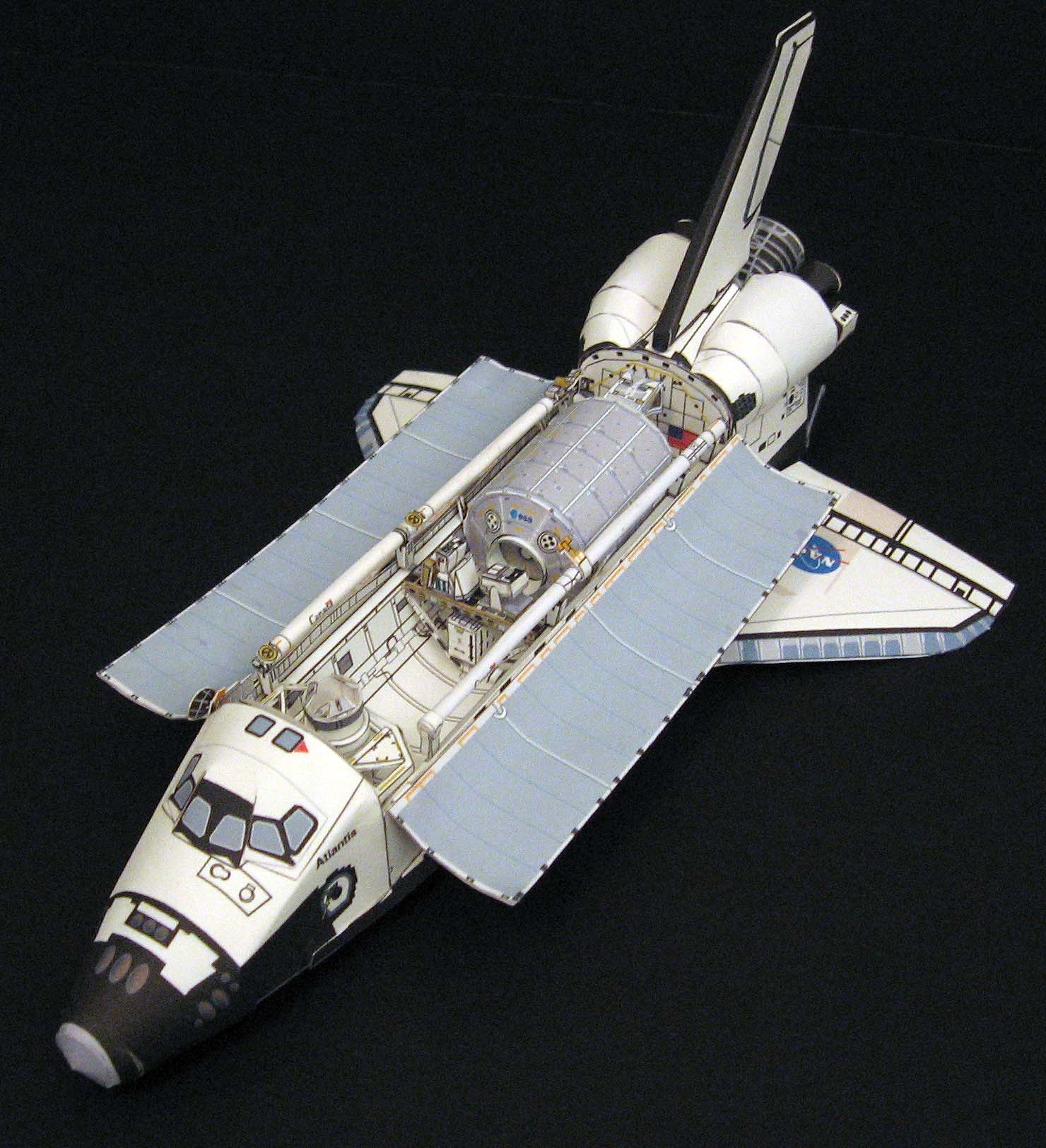

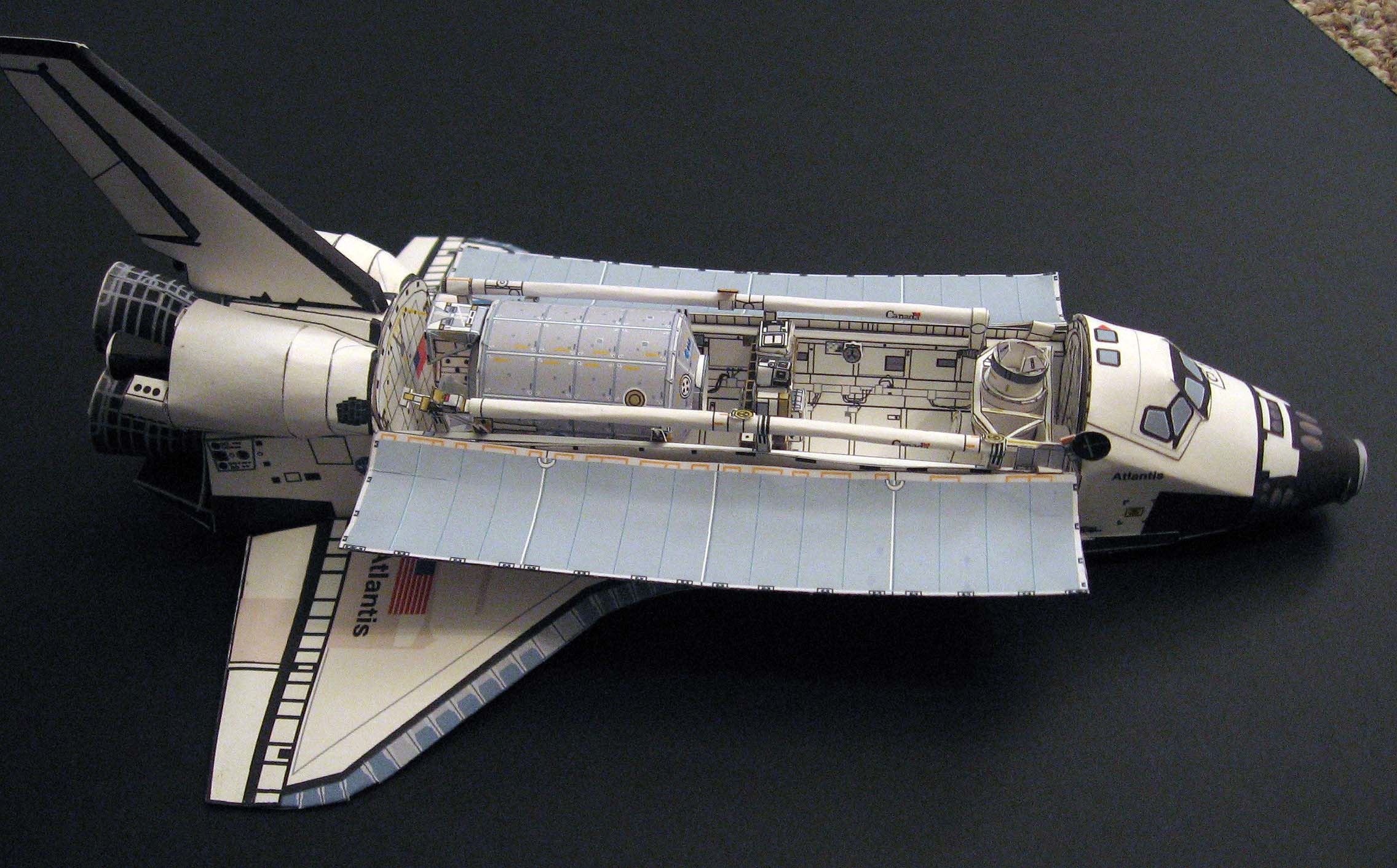

Orbiter file
atlamodif5.pdf (1.21 mb)
Payload available via Paypal (see Download page 5)

Payload Assembly Manual is included in file

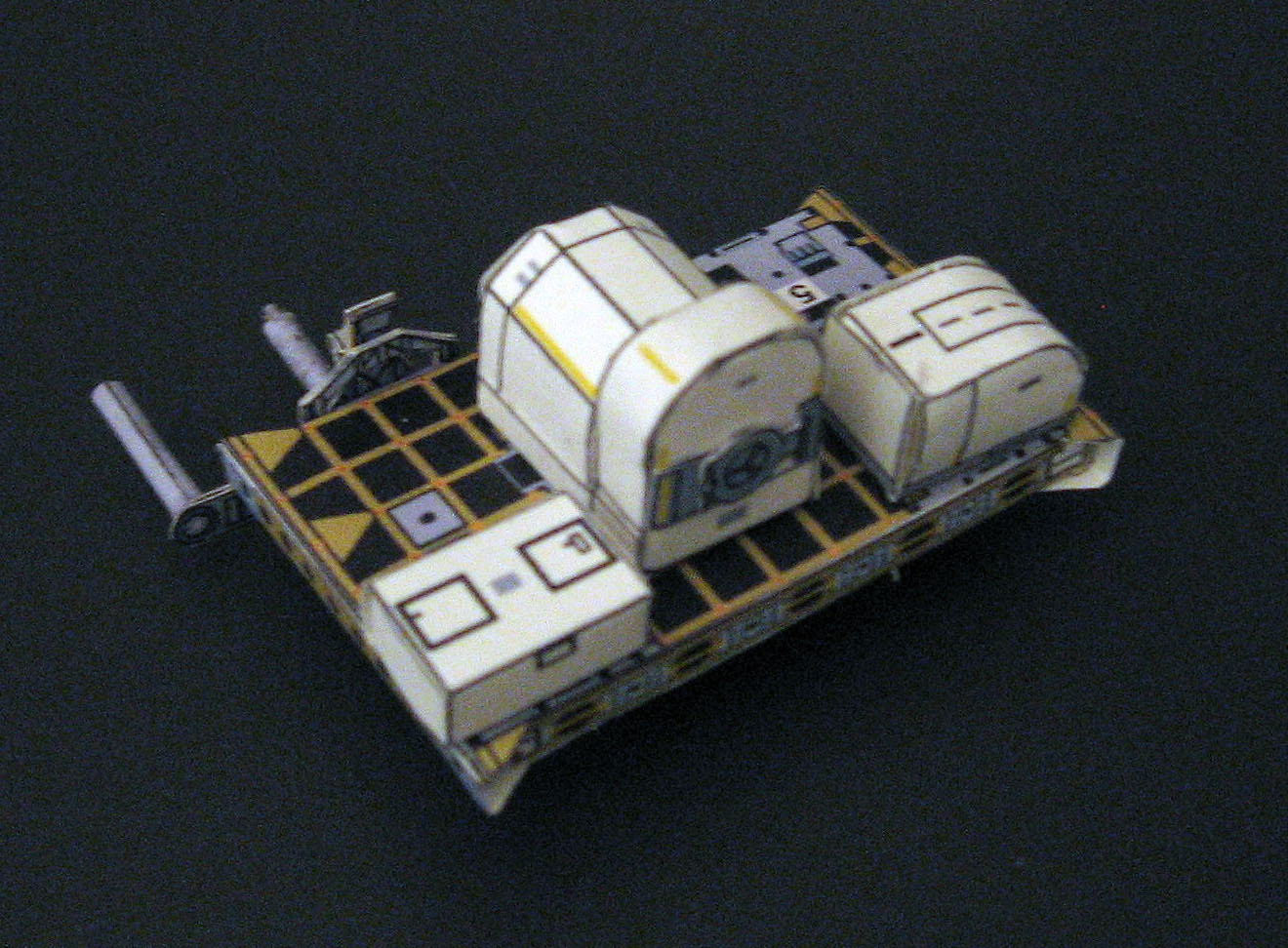

ESP-2 top view
ESP-2 bottom view

BONUS

Download the OBSS Modified Grapple Fixtures

Download the ESP-2 in 1:144 scale

Download the ESP-2 in 1:100 scale and its ORU's elements for this mission!!

"Columbus" patch source: www.spacefacts.de
